Bench Flume

Reinforced Concrete Bench Flume III (KS F 4010)

영문 이미지1

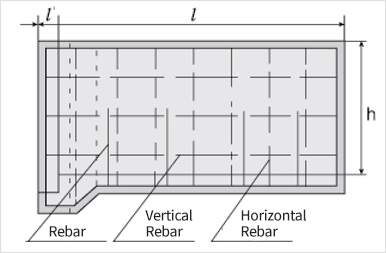

Side Elevation

영문 이미지2

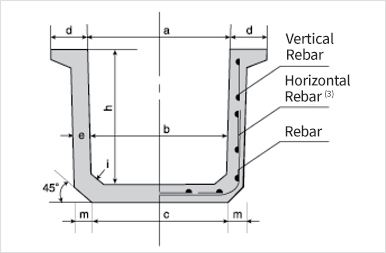

Center Cross-Section

영문 이미지3

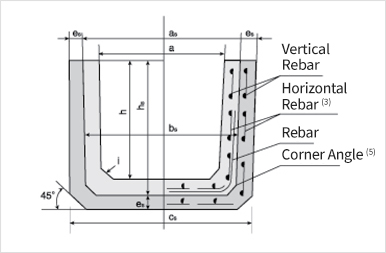

Socket Cross-Section (Joint)

Specifications Unit : mm

Model / Designation Center Dimensions Socket Dimensions Bar Arrangement
Top Width /
Bottom Width		 Base Width Thickness Depth i l Tolerance as
Min.		 cs
Min.		 ds
Min.		 es
Min.		 hs
Min.		 l
Min.		 Vertical
Rebar		 Horizontal Rebar
a b Tolerance c m d d m d Tolerance Diameter Quantity
(pcs)		 Diameter Quantity
(pcs)
l=2000
200 200 185 ±3 225 20 60 40 ±2 200 ±2 30 2000 ±5 295 360 280 40 240 50 4.0 9 4.0 16
300A 300 285 325 395 460 380 10
300B 335 45 250 35 405 480 390 45 295
300C 280 ±4 340 70 50 300 40 415 495 395 50 350 60 530 12
400A 400 380 440 515 595 495
400B 450 75 55 350 525 615 505 55 405 5.0 20
400C 370 450 80 60 400 535 625 60 460
450A 450 420 480 585 675 555
450B 490 85 65 450 50 595 695 565 65 515
500A 500 470 530 80 60 400 50 635 725 605 60 570
500B ±5 540 30 85 65 +3
-2		 450 ±3 50 645 745 615 65 460
500C 550 90 70 500 655 765 625 70 570
600A 600 570 530 80 60 400 735 825 705 60 460 5.5 5.5
600B 650 90 70 500 755 865 725 70 570
600C 660 90 75 600 765 885 735 75 675
700 700 670 760 865 985 835 13
800A 800 770 860 965 1085 935 18 D6
6.0
800B 850 100 80 700 60 975 1105 945 80 780 20
900A 900 860 +±7 940 40 +5
-2		 +±5 1075 1195 1035 6.0 21
900B 950 105 85 800 60 1085 1215 1045 85 885 22 24
1000A 1000 960 1050 1185 1315 1145 23
1000C 1000 960 1050 110 90 1000 80 1185 1315 1145 90 1090 70 23
1200B 1200 1140 1320 125 110 1000 80 1440 1600 1380 100 1110 70 23
1500A 1500 1420 1560 130 110 1200 140 1720 1870 1660 110 1110 90 26
1500B 1500 1420 1575 145 120 1200 140 1750 1900 1680 120 1310 90 28
