Lateral Drainage Channel

Lateral Drainage Channel (With Steel Angle / Without Steel Angle) - Type A

영문 이미지1

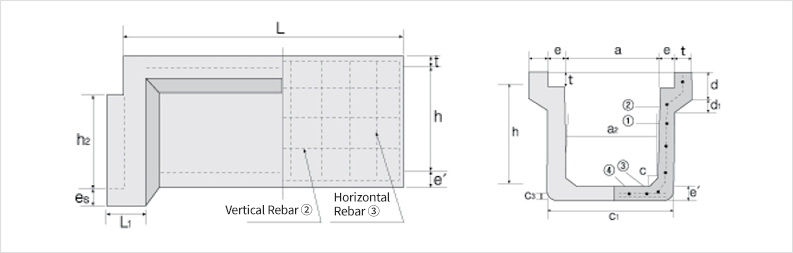

Plan View / Front View

Specifications Unit : mm

Nominal Size Width(A) Depth(H) Thickness(T) Length(L) Weight(Kg) Grating Size (Width x Length x Height)
200 200 200 80, 120 2000 275 250X995X50
300 300 300 80, 120 2000 430 400X995X50
300 300 300 80, 120 2000 500 400X995X50
400 400 400 80, 120 2000 600 500X995X50
500 500 500 80, 120 2000 870 600X995X50

Lateral Drainage Channel (With Steel Angle / Without Steel Angle) - Type B

Plan View / Front View

Specifications Unit : mm

Nominal Size Width(A) Depth(H) Thickness(T) Length(L) Weight(Kg) Grating Size (Width x Length x Height)
200 200 200 80, 120 2000 430 300X995X50
300 300 300 80, 120 2000 550 400X995X50
300 300 300 80, 120 2000 890 400X995X50
400 400 400 80, 120 2000 930 500X995X50
500 500 500 80, 120 2000 1300 600X995X50
