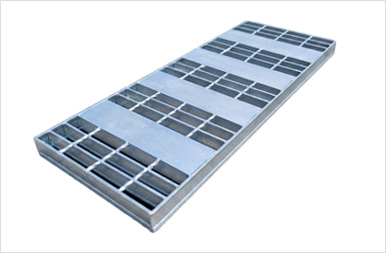

Steel Grating

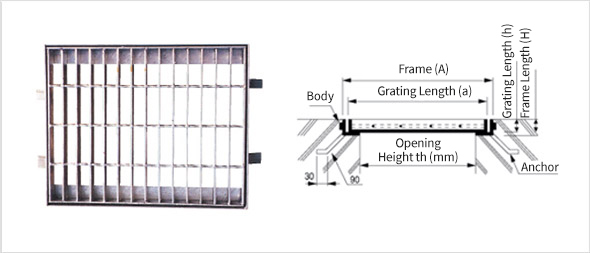

For Catch Basins
Specifications Unit : mm
| Specifications (WxLxH) |
Weight(kg) | Specifications (WxLxH) |
Weight(Kg) |
|---|---|---|---|
| 400x500x50 | 17.12 | 1000x1000x50 | 61.64 |
| 500x600x50 | 23.43 | 1000x1000x75 | 106.10 |
| 700x700x50 | 34.55 | 1100x1100x50 | 72.83 |
| 700x700x75 | 56.74 | 1100x1100x75 | 123.74 |
| 800x800x50 | 42.00 | 1300x1300x50 | 97.76 |
| 800x800x75 | 72.30 | 1300x1300x75 | 166.67 |
| 900x900x50 | 51.36 | 1600x1600x50 | 140.21 |
| 900x900x75 | 87.06 | 1600x1600x75 | 245.22 |
For Road & Sewer
Specifications Unit : mm
| Nominal Size | Specifications |
|---|---|
| 300 | 295x995x44 |
| 295x995x50 | |
| 295x995x50x7 | |
| 400 | 395x995x44 |
| 395x995x50 | |
| 395x995x50x7 | |
| 500 | 495x995x50 |
| 495x995x50x7 | |
| 600 | 595x995x50 |
| 595x995x50x7 |
For Pipe
Specifications Unit : mm
| Nominal Size | Specifications |
|---|---|
| 200 | 185X995X25 |
| 195X995X32 | |
| 300 | 285X995X25 |
| 285X995X32 | |
| 400 | 385X995X25 |
| 385X995X32 |
Noiseless Grating
Heavy-Duty Grating
Rolled Steel Heavy-Duty Grating
Plain Heavy-Duty Grating
Checkered Heavy-Duty Grating
