A Leading Specialist in Eco-Friendly Concrete Products

Manhole

Circular Sewer Manhole

Specifications Unit : mm

Nominal
Size		 A H T Weight(t)
Circular
Manhole		 1호 900 1200 200 3.02
2호 1200 1200 200 4.5
3호 1500 1500 200 6.5
Nova City Use
(Height Adjustment)		 900 500/1000 200
1200 500/1000 200 Height Adjustment Possible
1500 500/1000/1500 200 Height Adjustment Possible

Square Sewer Manhole

Specifications Unit : mm

Nominal
Size		 A B H T Weight(t)
Square
Manhole 600		 600 600 600 150 0.7
1000 1.2
Square
Manhole 800		 800 800 1000 150 1.8
Square
Manhole 900		 900 900 1000 150 2.1
Square
Manhole 1000		 1000 1000 1000 150 2.8
Square
Manhole 1200		 1200 1200 1200 150 3.9
Square
Manhole 1500		 1500 1500 1500 150 5

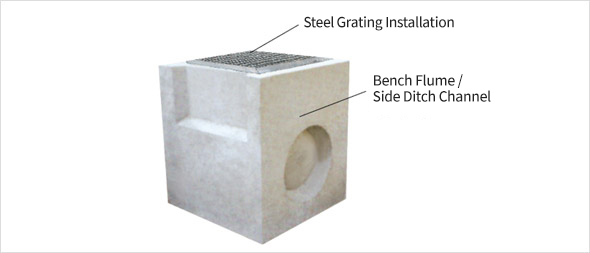

Sewer Manhole

영문 이미지1

Specifications Unit : mm

Nominal
Size		 A B H T Weight(t)
Square
Manhole 600		 600 600 600 150 0.7
Square
Manhole 800		 800 800 1000 150 1.8
Square
Manhole 1000		 1000 1000 1000 150 2.1

Concrete Rainwater Inlet (for Catch Basin)

Specifications Unit : mm

Nominal
Size		 Specifications
Rainwater Inlet 300x400x600
Grating 400x500x50
Rainwater Inlet 300x400x900
Grating 400x500x50
Catch Basin 600x600x(600,1000)
Grating 700x700x50

Handhole (Type 1)

Specifications Unit : mm

Nominal
Size		 A B H T
Handhole 1 450 95 700 150

Waterway Cover

Specifications Unit : mm

Nominal
Size		 Specifications
Waterway Cover 1200x2000x200
